Chain Cutting Machines
  • Chain Cutting Machines
Chain Cutting Machines

Chain Cutting Machines

Main Function:

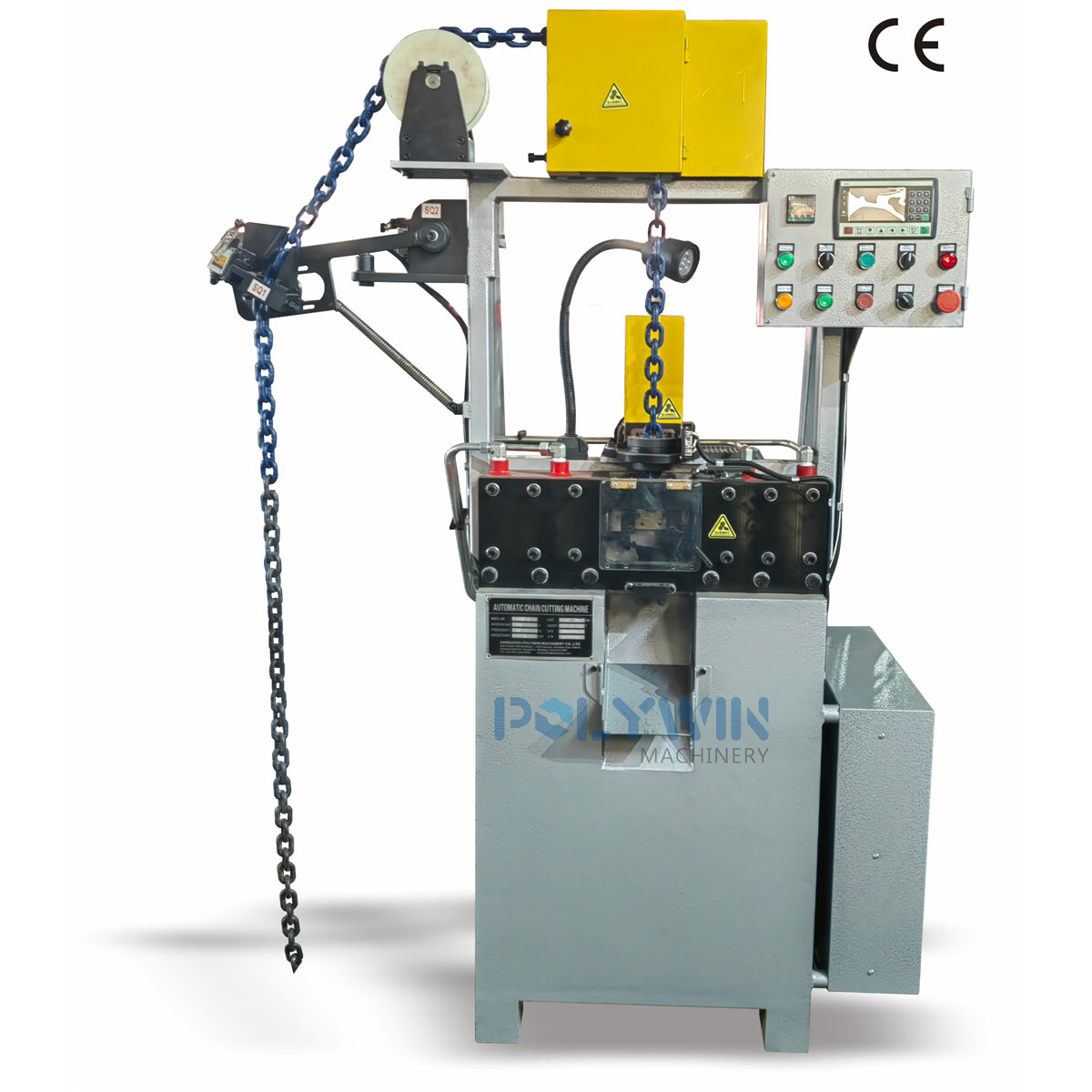

This is a specialized machine for cutting welded chains to specific lengths in manufacturing plants. It works by feeding the chain through servo-controlled feeding wheels while a counter tracks the number of links. You can easily set how many links to cut right on the control panel, allowing you to get chains of different lengths as needed.



Designed for convenience and durability, the machine lets you switch between cutting odd or even numbers of links with a simple panel setting. Its featured triangular triple-blade cutter lasts longer, and the molds are easy to replace—making it adaptable to various production requirements.



Ideal for automating chain production, this machine helps factories increase efficiency, boost output, and streamline their workflow.




Products details

 Model     Parameters

CECC-10

CECC-16

Max. chain cutting dia.

G80, ∅5-10mm

G80, up to ∅16mm

Max chain moving speed

30m/minute , servo adjustment

23m/minute , servo adjustment

Max tractive force

115 N/M

240N/M

Working pressure of hydraulic system

10Mpa

12Mpa

Total power KW/Voltage

5.0/380V

7.5/380V

Dimension (LxWxH :m)

1.2x1.0x1.9

1.5x1.0x2.0

Weight

1 T

1.5 T
